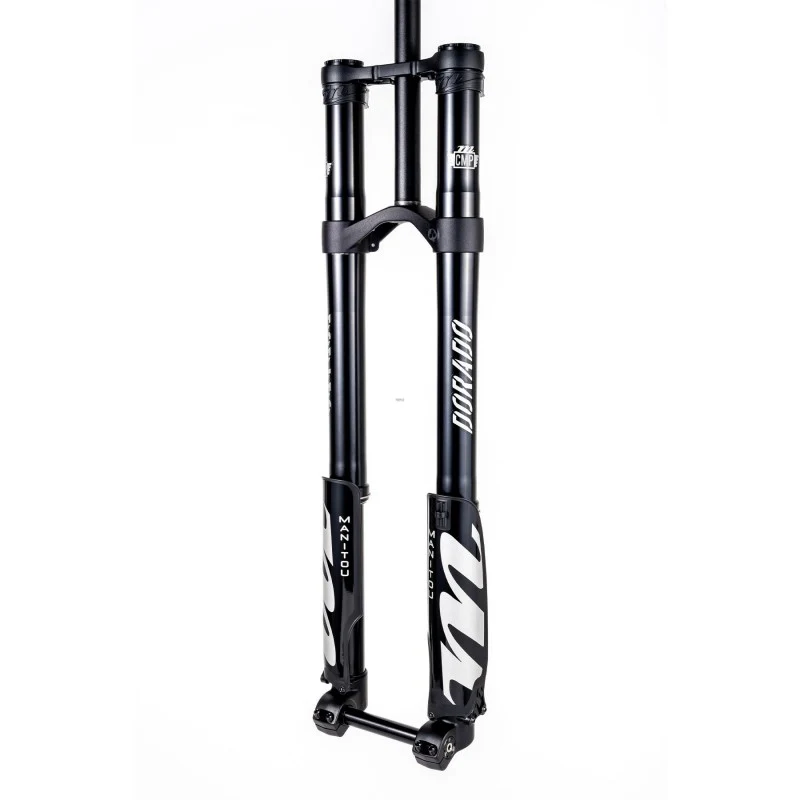

Manitou Dorado Comp Fork

The Manitou Dorado Comp puts a coil spring inside the same 37 mm inverted chassis as the Dorado Expert, and that single decision defines the fork. There is no air pressure to check, no negative chamber to think about and no travel dial to second guess. You fit it, set the sag once with preload, dial in two damping clicks and ride. For a Sting MX3, Sting R MX4 or XXX owner who wants a serious downhill fork without the tuning homework, it is the value entry into the Dorado family.

Who the Dorado Comp is for

Ask a group of Sting owners what they want from a fork and most say the same thing: stop the front diving, stop it deflecting off roots, and do not make me learn a shock pump. The Manitou Dorado Comp answers all three. Manitou describes it as the fork for riders who just want to ride and not sweat the small stuff: the Dorado for people who ride more than they tinker.

The typical buyer

You ride the same woods, the same farm track or the same practice loop most weekends. Your weight in kit does not change much. Nobody else rides your bike. You want the fork to feel the same in November as it did in June. If that is you, the coil spring in the Manitou Dorado Comp is not a compromise, it is the correct choice.

Who should look at the Expert instead

Riders of very different weights sharing one bike, or anyone who wants to switch between 180 mm and 203 mm travel through the year, should look past the Manitou Dorado Comp and read the air sprung Manitou Dorado Expert page first.

Why a coil spring makes sense on an electric dirt bike

A coil spring has a linear rate. Push it twice as far and it pushes back twice as hard, from the first millimetre to the last. There is no seal drag at the start of the stroke, so the Manitou Dorado Comp begins moving on the smallest bump. Manitou calls this maximum bump sensitivity, and on a bike with no engine vibration to help the fork break free, that sensitivity is noticeable on every root and stone.

The XX Firm spring

Manitou recommends its XX Firm spring for electric bike installations, and that is the spring specified for this fork. An electric dirt bike loads the front end differently from a downhill mountain bike: the mass sits low, but the bike is heavier and it hits things harder because the motor keeps pulling on the way in. The firmest spring in the range keeps the Manitou Dorado Comp up in its travel under a Talaria without relying on excessive compression damping.

Consistency in the cold

Air springs stiffen and soften with temperature because the gas inside them obeys physics you cannot switch off. A coil does not care whether it is minus two on a January morning or twenty five degrees in July. For UK riders who do most of their hours between October and March, that is a strong argument for the Manitou Dorado Comp.

What the Comp shares with the Expert

The Manitou Dorado Comp is not a cut down fork. Everything below the spring is the same hardware Manitou fits to the Expert, which is what makes the Comp such good value.

The 37 mm chassis

The Manitou Dorado Comp uses the current 37 mm inverted chassis, exactly as the Expert does, and Manitou states it is 20 percent stiffer than the outgoing 36 mm design. Inverted forks are strong fore and aft, the plane in which braking loads the front end, while allowing the torsional compliance that lets the wheel track a rut without fighting the bars. The bushings and seals sit in oil at the bottom of the outer legs, so the fork stays smooth through a full day.

ABS+ damper

The ABS+ damper in the Manitou Dorado Comp is the unit Manitou fits to the Expert as well. It gives you low speed compression and low speed rebound adjustment from external dials, nothing more, and that restraint is deliberate. Two adjusters that each make an obvious difference are easier to live with than six that interact. Manitou’s own words for the damper are reliability and easy serviceability.

TSR bleed screws and top drop crown

Both forks carry TSR bleed screws to release pressure that builds in the outer legs on long descents, and both ship with the top drop crown that Manitou recommends for electric bike installations.

Manitou Dorado Comp or Expert: the honest comparison

Because the two forks share so much, Manitou Dorado Comp against Expert is really a comparison of springs, and of what each spring asks of the owner. Read the table from the Comp buyer’s side: every row where the Expert wins is a row that costs you time or attention.

The Manitou Dorado Comp gives up two things: travel adjustment and quick spring rate changes. It gains temperature stability, small bump feel and simplicity, and it costs less. For a single rider with a settled riding pattern, that is an easy trade.

Which Talaria models it fits

Manitou lists the Dorado Comp with the top drop crown for the three Talaria models below. These are the models whose head tubes, front hubs and brake mounts the Manitou Dorado Comp was validated against, so they are the only ones we sell it for.

• Talaria Sting MX3: the model that gains the most, because the standard MX3 fork is the least adjustable of the range.
• Talaria Sting R MX4: a coil alternative to the air Dorado that Talaria fits to the MX4 Expert. Check your front disc size when choosing a calliper adapter.
• Talaria XXX: fits with the supplied crown, and the XX Firm spring remains the recommended rate.

What carries over from your bike

Your front wheel, disc and calliper transfer to the Manitou Dorado Comp on its downhill thru axle, and the post mount brake tab takes an adapter sized to your disc. Owners replacing the wheel at the same time can pair the fork with our 19 x 1.40 front rim assembly or go the other way entirely with a 21/18 KKE wheel set on the MX3.

Road legal bikes

The L1e and L3e Sting share the same front end, so the Manitou Dorado Comp fits, but the suspension is part of the specification your bike was registered and insured to, so tell your insurer and keep the original Talaria Sting forks. Fork choice does nothing to change where an off road model may be ridden, and our guide on whether Talarias are legal in the UK covers the categories in detail.

Fitting day, stage by stage

Allow half a day, a clean bench and a torque wrench to fit a Manitou Dorado Comp. A fork swap is well within reach of a home mechanic who has done a wheel and brake job before, but the steerer cut is permanent, so if you are unsure, a downhill bike workshop will do it in an hour.

Stage one: measure before you remove

Before a single bolt comes undone, measure the exposed steerer length and the distance between the two crowns on your original fork, and photograph the brake hose routing. These numbers decide where the Dorado crowns sit and how much steerer you cut.

Stage two: strip the front end

Lift the front wheel on a stand, remove the calliper, then the wheel and mudguard. Loosen the bar clamp, then the upper and lower crown pinch bolts, and slide the fork down and out. Lift the crown race off the old fork if it is reusable, or fit the new race supplied.

Stage three: install the Manitou Dorado Comp

Set the top drop crown at the height you measured, cut the steerer, fit the race and slide the fork home. Set headset preload so there is no play and no drag, then torque the pinch bolts in Manitou’s published sequence. Uneven pinch bolt torque ovalises the leg and makes an inverted fork bind, so this is the step to be patient with.

Stage four: wheel, brake and check

Refit the wheel with the axle to the specified torque, mount the calliper on the correct adapter and centre it on the disc. Compress the fork fully by hand and confirm the tyre clears the lower crown and the hose has slack at full lock. Bed the brake in gently on your first ride.

Setting up a coil fork: sag, preload and damping

With no air pressure to set, setup on the Manitou Dorado Comp takes ten minutes. The order matters: sag first, then rebound, then compression.

Sag and preload

In full riding kit, stand on the pegs in your normal position and have a helper measure how far the Manitou Dorado Comp compresses from fully extended. Around a quarter of the stroke is a sensible target for a Talaria, and preload adjusts that figure by a small amount. If you need more than the preload range provides, you need a different spring rate, because excess preload spoils the small bump feel the coil is there to provide.

Rebound

Push down hard on the bars and let go. The fork should rise to full height in one clean movement, without bouncing over and without hanging. Too fast and the front will kick over a series of bumps, too slow and it will pack down and ride low into the third hit. Two clicks at a time, then ride the same section again.

Compression

Low speed compression on the Manitou Dorado Comp is your tool against brake dive and against the fork wallowing when you pump through berms. Start in the middle of the range. Add clicks only if the front sinks under hard braking, remove clicks if the fork feels harsh on small chatter, then write the settings down. On a coil fork you will rarely change them again.

Long term ownership and service

The seals on the Manitou Dorado Comp live at the bottom of the legs, in the spray from the front tyre. Wipe them after every wet ride, cycle the fork a few times and wipe again. Never aim a pressure washer at the seal lip.

Service schedule

Manitou publishes hour based intervals for a lower leg service and for the ABS+ damper. Count riding hours rather than months, because a Talaria used through a British winter racks up hours faster than owners expect. The damper is serviceable with ordinary workshop tools, and coil spring changes need nothing more than a top cap tool.

Signs to act on

• Oil on the leg below the seal: replace the wiper before grit follows the oil in.
• A dull knock at full extension: check pinch bolt torque, then headset preload.
• Rebound that no longer changes with the dial: damper oil is due.
• The fork riding lower over time: springs settle slightly, reset preload.

The fork is covered by our UK warranty, full terms on the warranty page. Our Talaria maintenance guide covers the checks worth doing while the front end is apart.

Frequently asked questions

Is the Manitou Dorado Comp a lesser fork than the Expert?

No. It shares the 37 mm chassis, the ABS+ damper, the TSR bleed screws and the top drop crown with the Expert. The only difference is the spring: coil on the Comp, air with travel adjustment on the Expert. Riders who value consistency and simplicity often prefer the coil, and it is the lower priced route into the same chassis.

I have seen it called the Manitou El Dorado. Is that a different fork?

No. El Dorado is a common misspelling that turns up in searches and forum posts. The fork is the Manitou Dorado, and the two current models are the Dorado Comp with a coil spring and the Dorado Expert with an air spring. If a listing elsewhere uses the El Dorado name, it is describing one of these two forks.

Which spring comes fitted?

The Manitou Dorado Comp is supplied with the XX Firm spring that Manitou recommends for electric bike installations. For most Talaria riders in full kit that is the correct rate, and preload covers the fine adjustment. A rider well outside the typical weight band may want a different rate, and we can advise before you order.

Can I change the travel on the Comp?

Travel on the Manitou Dorado Comp is set by the fitted coil assembly rather than by an adjuster, so it is not something you change between rides. If you want to move between 180 mm and 203 mm through the season, that is the case for the Expert. If you are happy with one setting, the Comp gives you that setting with less to maintain.

Does it fit the standard Talaria Sting forks’ mudguard and brake?

The Dorado has its own mudguard mounting on the lower arch, and the standard Talaria mudguard may need an adapter or a Dorado specific guard. The brake calliper fits the fork’s post mount through an adapter chosen for your disc diameter. Your existing wheel, axle standard and disc transfer across without modification.

Next steps

If you recognised yourself in the first section, the Manitou Dorado Comp is the fork to order, with UK mainland delivery, timescales confirmed at checkout. Still undecided? The Dorado Expert page makes the case for air from the other side. See the rest of our Talaria parts for brake and wheel upgrades, or contact us with your weight and riding style for a spring recommendation. Green lane and competition rules are published by the Trail Riders Fellowship and the Auto Cycle Union, and Manitou’s setup and torque documentation lives at manitoumtb.com.
