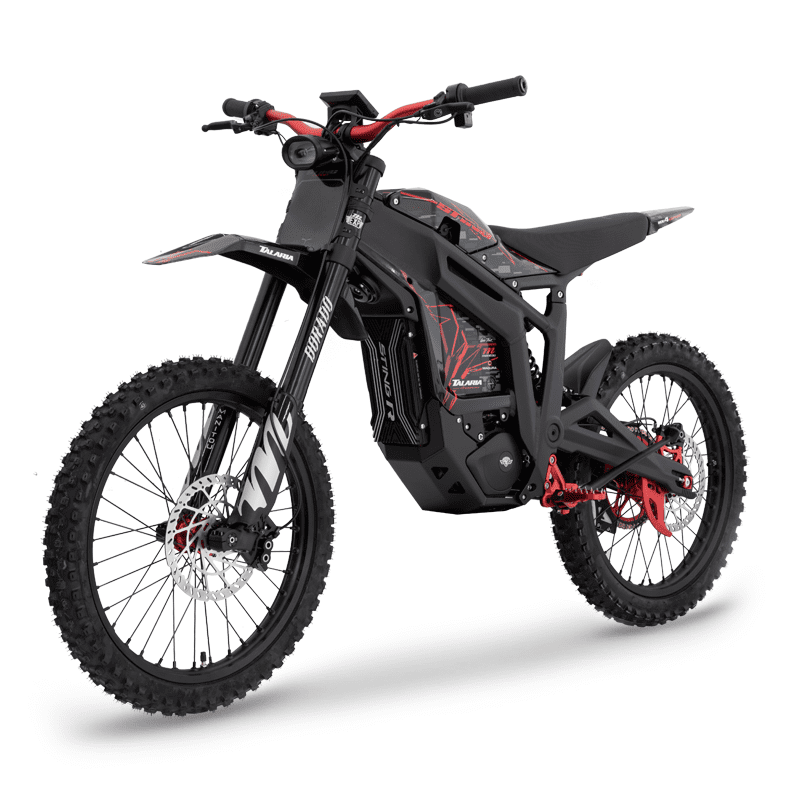

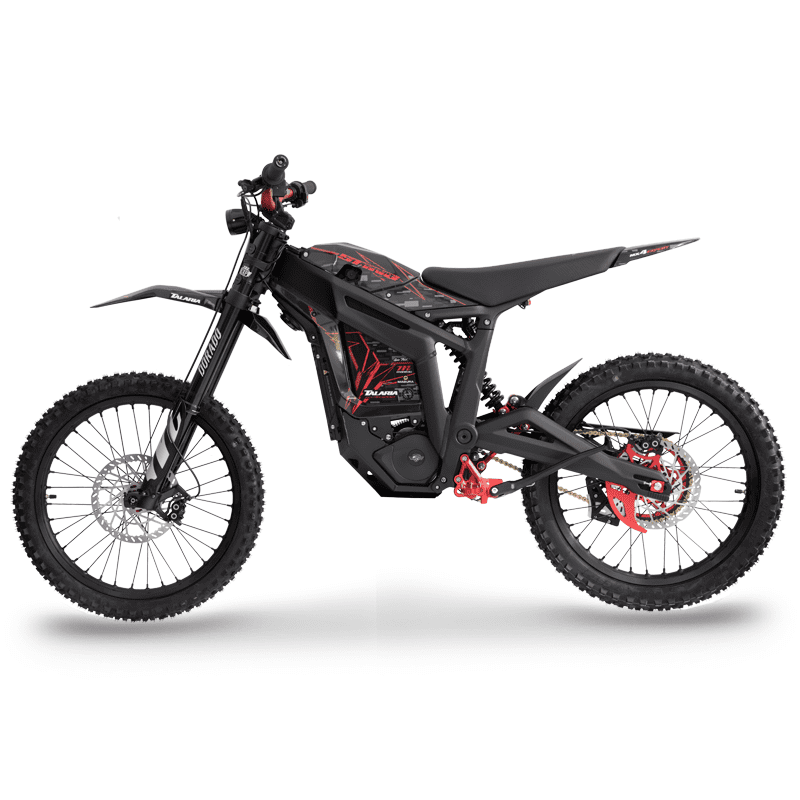

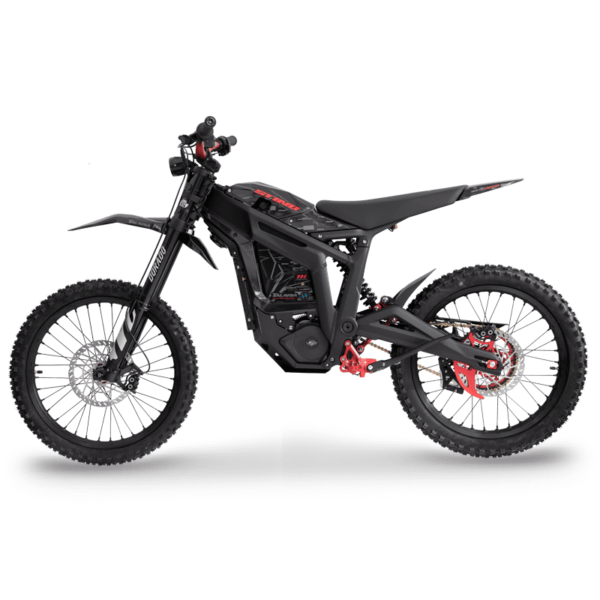

TALARIA STING R MX4 EXPERT (Manitou Fork)

The Talaria Sting R MX4 Expert is what happens when the factory answers the two complaints experienced riders raise first: the fork and the brakes. A Manitou Dorado Expert inverted front fork, Magura MT5 callipers on 220 mm discs, a 10 percent lift in peak power and a run of red CNC hardware turn the standard MX4 into a bike for riders who already know how they want a suspension to behave. The Talaria UK offers it in red or black.

Why suspension comes first on this bike

Ask anyone who has ridden a standard Sting hard for a season what they would change and the fork comes up before the motor. The stock units are competent for trail pace, but once a rider starts jumping, braking late into ruts or riding rocky descents at speed, the limits of a budget fork show as dive under braking and a harsh top out on rebound. Talaria’s answer for the Talaria Sting R MX4 Expert was to fit a fork from a specialist rather than tune the existing one.

The problem the Expert solves

An electric dirt bike carries its mass low and central, so the front end is lighter than on a petrol machine of the same size, and a poorly damped fork feels worse because there is less weight to settle it into its travel. A fork with proper adjustable compression and rebound circuits lets the rider tune out the skittish feel at the front and use the whole stroke. That is the single biggest difference between the Talaria Sting R MX4 Expert and the bike it is based on.

The Manitou Dorado Expert fork

The Manitou Dorado is an inverted fork, meaning the larger diameter stanchions clamp into the triple trees and the sliders sit at the wheel. Inverted designs are stiffer in torsion and put the seals where they are less exposed to mud thrown up by the front tyre. The Dorado has a long history in downhill mountain bike racing, and the Expert version brings that architecture to the Sting chassis with external adjusters for the settings a rider actually changes.

What is adjustable

The Talaria Sting R MX4 Expert fork gives you control over spring pressure, rebound damping and compression damping from outside the leg, without tools beyond a shock pump. In practice that means you set sag for your weight in kit, dial rebound so the front settles after a hit without kicking back, and then use compression to stop the fork blowing through its travel on big landings. Retuning for different ground takes minutes.

Why it changes the handling

With the front end properly damped, the Talaria Sting R MX4 Expert holds a line through braking bumps that would push a standard MX4 wide. The steering feels planted at speed because the fork is not diving and rising with every throttle input. On slow technical sections the difference is smaller, and for a rider who never leaves the fire road the upgrade will be hard to feel, which is why we still recommend the standard Sting R MX4 for a first electric dirt bike.

Magura MT5 brakes

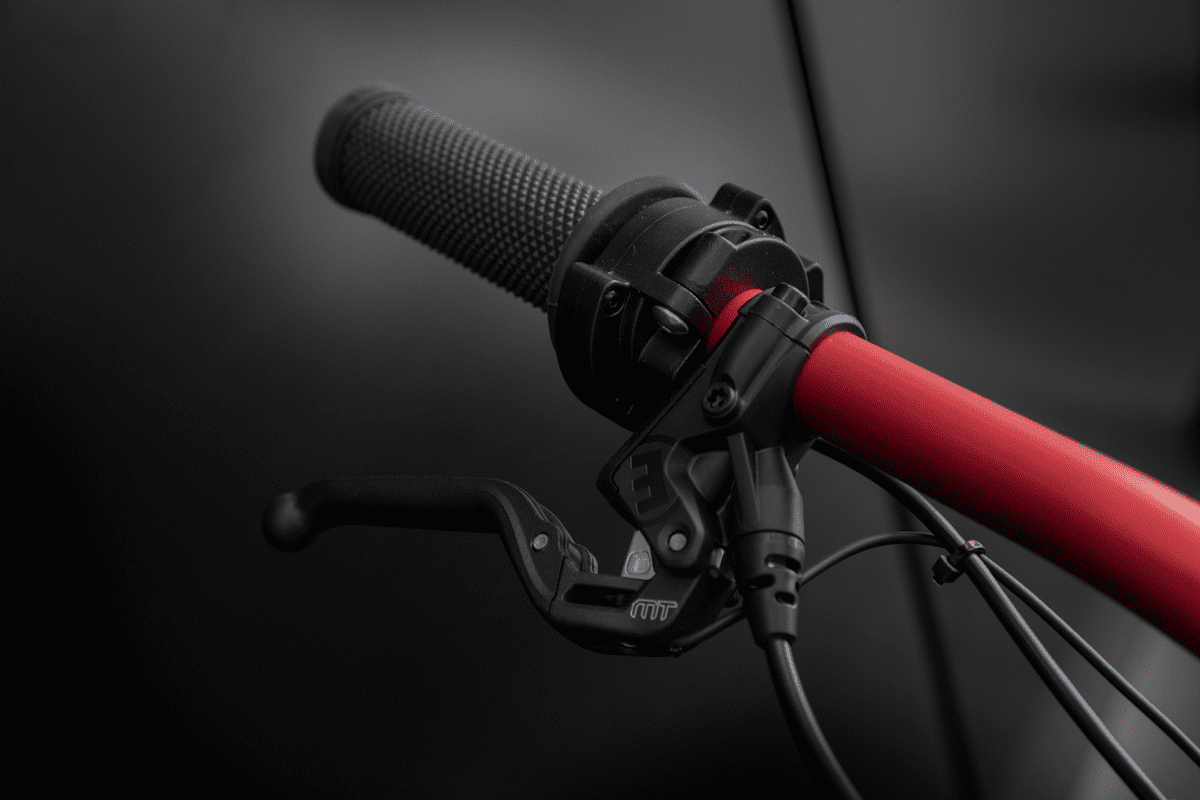

Better suspension lets you carry more speed, and more speed needs brakes that stay consistent. The Talaria Sting R MX4 Expert uses a Magura MT5 brake system with 220 mm discs. The MT5 is a four piston hydraulic calliper well known in downhill and enduro cycling, and its lever gives a firm, progressive bite rather than the wooden feel of a cheaper master cylinder. Pad changes are quick and replacement pads are widely available in the UK.

Regeneration works with the callipers

The Talaria Sting R MX4 Expert keeps the four level regenerative braking of the standard MX4, selectable from the display. On a long descent the sensible approach is to set regen high enough that the motor does most of the retarding, then use the MT5 callipers for the last few metres into a corner. That keeps the pads cool, extends range slightly, and means the hydraulic system is fresh when you need a hard stop.

More power on the same drivetrain

Talaria quotes a 10 percent increase in peak power for the Talaria Sting R MX4 Expert over the standard bike, delivered through the same air cooled DC IPM mid motor. Nominal torque rises to 50 Nm at the motor shaft. The motor keeps its 7.0 kg weight and 180 mm diameter and is rated at 94 percent peak efficiency, with the FOC controller at 92 percent. The extra output comes from controller mapping and motor refinement rather than a larger, heavier unit.

Gearbox and chain

Primary drive is still the internal gearbox, so the extra torque goes through hardened gears in an oil bath rather than a belt that would need re tensioning. Final drive is chain, with the same two rear sprocket options as the rest of the Sting R family: 44 tooth for an 8.35 ratio or 48 tooth for 9.18. The chain guard was redesigned for the Talaria Sting R MX4 Expert to keep mud off the front sprocket and reduce chain slap noise.

Battery

The Talaria Sting R MX4 Expert pack is the 60V 45Ah unit shared with the standard MX4, built from LG 21700 cells of 5000 mAh each, weighing 12.85 kg and measuring 170 x 140 x 380 mm. Charge time from empty is around 3 hours. Because the pack is common across the MX4 family, a spare from our batteries and chargers category fits without modification.

Speed

The published maximum speed for the Talaria Sting R MX4 Expert is 55 mph, a little above the standard MX4 figure. That number assumes the taller 44 tooth gearing, a flat surface and a rider of average weight. Fitting the 48 tooth sprocket trades a few mph at the top for noticeably stronger drive out of slow corners, which most UK woodland riders prefer.

CNC hardware and finish

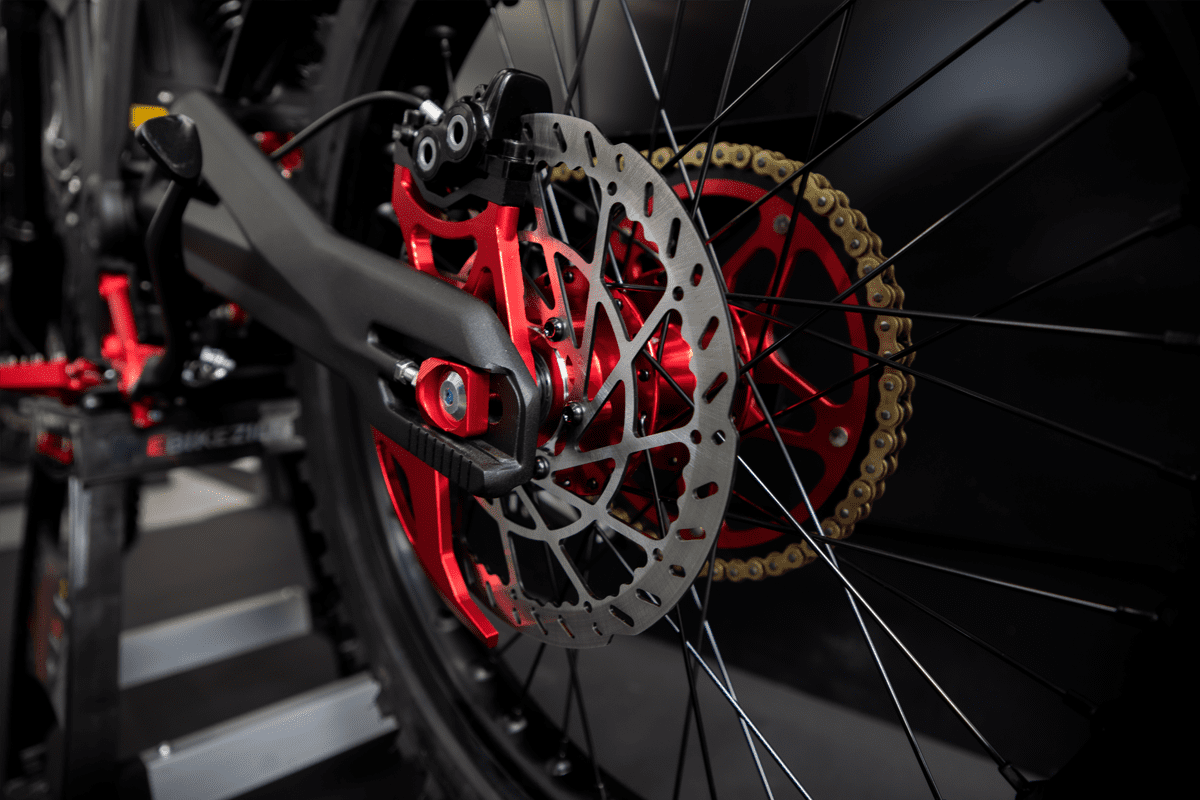

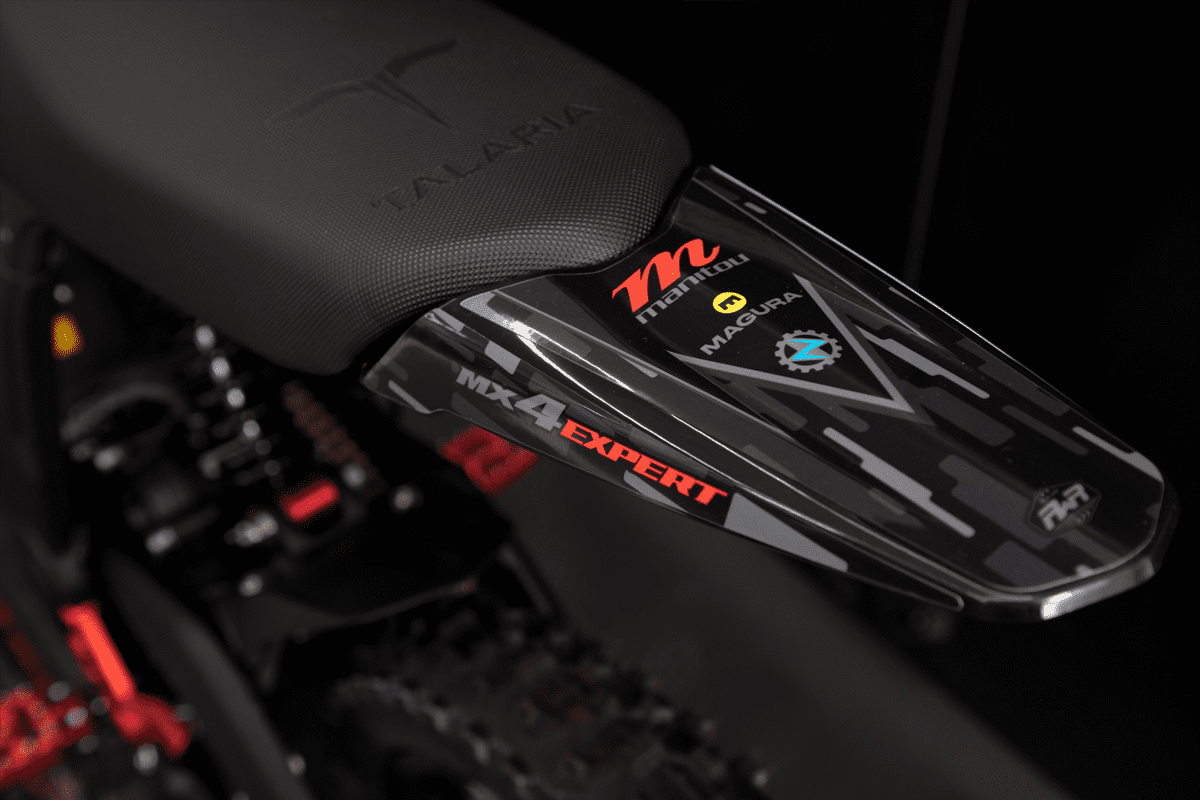

The Talaria Sting R MX4 Expert is easy to identify. A set of machined parts finished in red replaces the cast or black items on the standard bike: the rear brake disc guard, both hubs, the footpegs, the number plate mount, the axle blocks, the shock linkage and the rear sprocket. The wheels are laced with black spokes rather than silver, and the bike is available in red or black plastics with the red hardware on both.

More than cosmetic

Machined hubs and axle blocks on the Talaria Sting R MX4 Expert hold tighter tolerances than cast equivalents, which matters for wheel alignment and bearing life on a bike that gets jumped. The CNC linkage is the more important of the set because it controls the rear shock’s leverage ratio, and a precise linkage keeps the rear suspension behaving the same at the end of a day as it did at the start.

Display

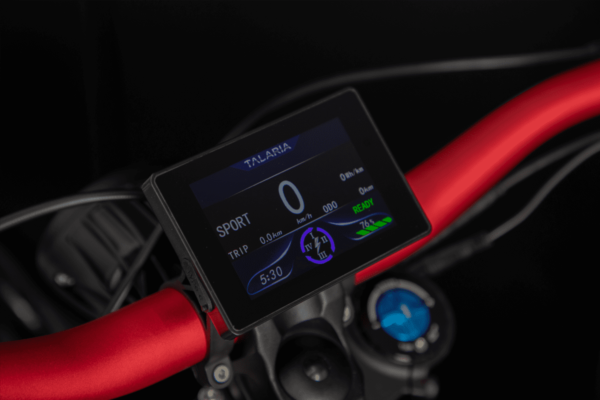

The Talaria Sting R MX4 Expert carries the larger high contrast OLED display. It reads speed, battery level, pack voltage and odometer, and it is where you select the regeneration level. Because it talks to the BMS and the controller over CAN, the battery percentage shown is the pack’s own figure rather than a guess from voltage alone.

Talaria Sting R MX4 Expert versus the standard MX4

The table below sets the two bikes side by side using Talaria’s published figures. Items marked shared are identical on both, which matters if you plan to move parts between bikes, buy spares, or sell one on later and want to know exactly what a buyer is getting.

Which to choose

If your riding is trail exploring, practice laps at moderate pace or a first season on an electric bike, the standard MX4 gives you the same motor family, pack and gearbox with money left for tyres and kit. If you already ride hard, jump, or race at club level, the Talaria Sting R MX4 Expert’s fork and brakes are the upgrades you would otherwise buy separately, and buying them fitted from the factory is simpler than sourcing a Manitou Dorado Expert fork on its own and fitting it later.

Setting up the fork for UK ground

A Talaria Sting R MX4 Expert arrives with its Dorado at a generic setting. The first job before any serious ride is to set sag: sit on the bike in full kit, have someone measure how far the fork compresses, and adjust air pressure until it sits at roughly a quarter to a third of its travel. That single step does more for handling than any other adjustment, and it is worth repeating whenever your riding weight changes with kit or a hydration pack.

Rebound and compression

Start with rebound in the middle of its range. Ride a section with repeated small bumps: if the front feels like it packs down and gets harsher with each hit, rebound is too slow, so open it a click or two. If the front kicks back and feels springy, close it. Compression is the last adjustment. Add it only if the fork bottoms on landings you are comfortable with, one click at a time, and write your settings down.

Care

Wipe the stanchions after every muddy ride and check the seals for weeping oil. Inverted forks keep their seals higher off the ground than conventional designs, but UK winter mud finds its way everywhere. Manitou publishes the Dorado’s service intervals, and fresh oil in the damper is what keeps the adjustments meaningful.

Where you can ride it

The Talaria Sting R MX4 Expert is an off road machine. It carries no type approval, so it cannot be ridden on any public road in the UK, and that includes byways, bridleways, footpaths and pavements. It is built for private land with the landowner’s permission, practice tracks and organised competition. Riders looking for a Sting they can register and ride on the road should look at the road legal Talaria range instead.

Competition and clubs

The Auto Cycle Union is the governing body for motorcycle sport in the UK and its affiliated clubs run the practice days and events where a bike like the Expert belongs. Electric classes are growing at club level, and a fork and brake package at this standard is what makes the Talaria Sting R MX4 Expert competitive against petrol machines in the same class. Riders exploring lawful green lanes on a registered bike can find route and access guidance through the Trail Riders Fellowship.

Insurance and transport

Because it is not road registered, the Talaria Sting R MX4 Expert cannot be ridden between your home and a track. It travels in a van or on a rack, and the 66 kg class weight of the Sting platform makes that easier than most petrol enduro bikes. Off road insurance for theft and damage is available separately, and some venues require public liability cover. General guidance on motorcycle licensing categories is on GOV.UK.

Frequently asked questions

Is the Talaria Sting R MX4 Expert the same as the Talaria Sting R Pro?

Not officially. Some UK riders use Talaria Sting R Pro loosely to mean any upgraded Sting R, but the Expert is a defined factory edition with the Manitou Dorado Expert fork, Magura MT5 brakes and red CNC hardware. If a listing says Pro, check whether it means this Expert edition or the larger MX5 Pro, which is a different bike.

Can I fit the Manitou Dorado Expert fork to my existing MX4?

Yes. We sell the fork on its own and it fits the Sting R MX4 and Talaria Sting MX4 chassis. Fitting needs the correct triple clamps and a workshop that can set up an inverted fork properly. Buying the Expert edition gets you the fork, the brakes and the hardware in one go, already fitted and set up.

How much more power does the Talaria Sting R MX4 Expert have?

Talaria quotes a 10 percent peak power increase over the standard MX4 and raises nominal torque from 45 Nm to 50 Nm. The motor is the same air cooled DC IPM design at 7.0 kg, so the gain comes from mapping and refinement rather than a bigger unit. Maximum speed is published as 55 mph.

Does the Talaria Sting R MX4 Expert use the same battery as the standard MX4?

It does. The 60V 45Ah pack with LG 21700 cells is shared across the MX4 family, weighs 12.85 kg and charges in around 3 hours. Any spare pack or charger that fits a standard MX4 fits the Expert, which keeps the cost of a second battery sensible.

Is the Expert road legal in the UK?

No. The Talaria Sting R MX4 Expert has no type approval and cannot be registered or ridden on public roads, byways, bridleways or footpaths. It is for private land with permission and organised events. If you need a road legal Sting, the L1e and L3e versions in our road legal category are the correct choice.

What colours does the Expert come in?

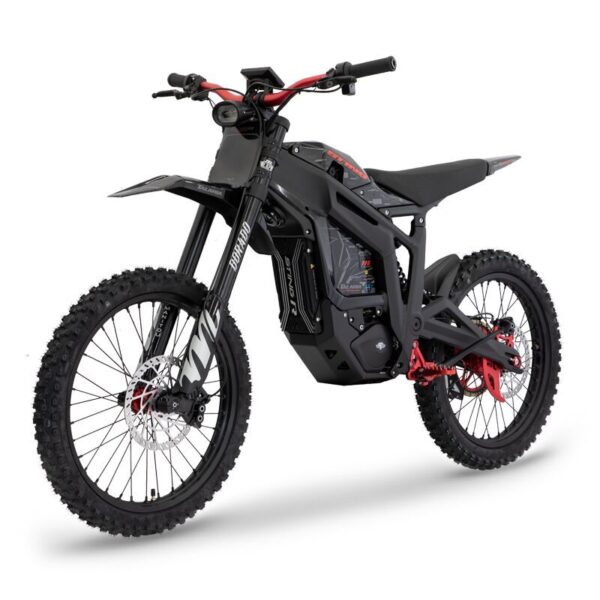

The Talaria Sting R MX4 Expert comes in red or black plastics, both with the red CNC hardware and black spokes. The forged aluminium frame is anodised the same on each, so the choice is about the bodywork. Availability of each colour changes through the year and the product page shows what can be ordered today.

Next steps

Choose red or black above and place your order, or spread the cost through Talaria finance. Delivery is to UK mainland addresses with timescales confirmed at checkout, and every Talaria Sting R MX4 Expert is covered by our UK warranty, full terms on the warranty page. If you are still weighing the Expert against the rest of the family, the full Talaria Sting range sits side by side in one place.
